Aluminium bridges and bridge spans
All over the world, there is a boom in the construction of pedestrian bridges from aluminium. The reason for this is that the service life of aluminium bridges is the same as that of steel and reinforced concrete bridges, but aluminium bridges require very little maintenance while in use, which means their total cost of ownership for municipal and regional governments is significantly less.
Aluminium bridge spans weigh 1.5–2 times less than steel ones, which means their manufacture and installation is much easier in remote areas, in cramped urban conditions, and in cities with historical buildings. Aluminium bridges are fast to build: an aluminium structure can be installed in place in one go in less than 1 hour, and the entire bridge can be assembled in under 1.5–2 hours, which means there is no need to close off roads for an extended period of time, thus minimising traffic congestion and inconvenience for residents. An important advantage of aluminium when used in bridge design is that it allows architects to use some very unusual shapes (due to the high plasticity of aluminium alloys), which can serve as very good decorations in modern cities.
And yet, until very recently, Russia only had one aluminium bridge, which was built in 1969. It was the Kolomensky bridge in Saint Petersburg. In this country, steel, concrete, stone and wood remained the main materials used in bridge construction.
Through the efforts of the Aluminium Association and its member companies, major changes have been set in motion in domestic bridge construction, and now, new bridges are being constructed from aluminium alloys:

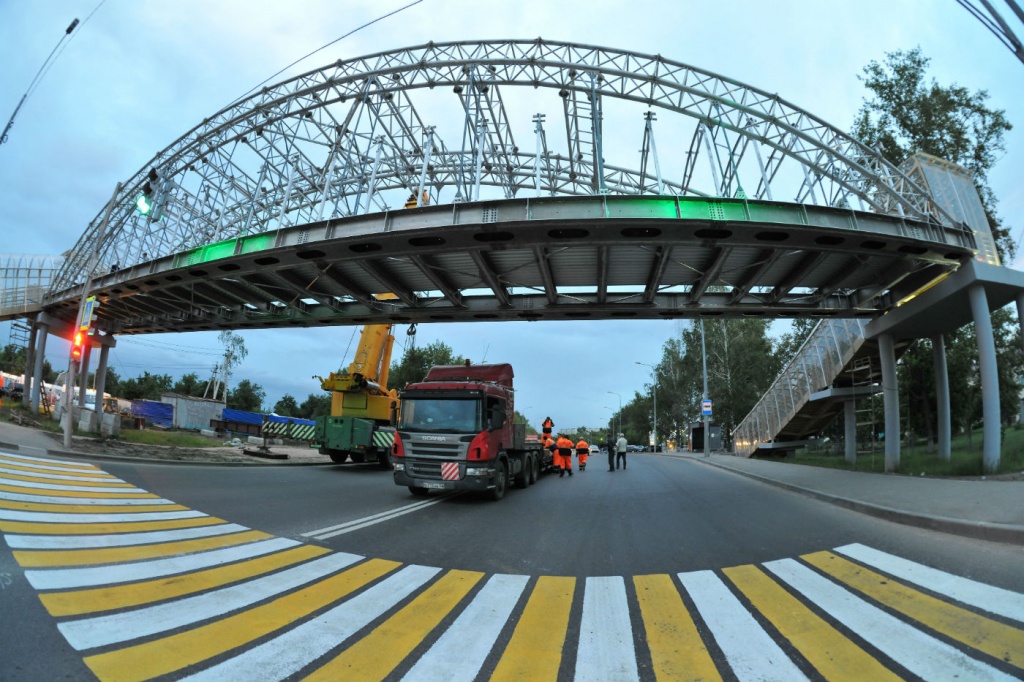

In 2017, 2 aluminium alloy bridges were installed in the Nizhny Novgorod Region (village of Afonino, adjacent to Nizhny Novgorod, the regional capital). The bridges meet all the safety and ease of access requirements for people with disabilities.
Project participants: The Aluminium Association, the Ministry of Construction, Housing and Utilities of Russia, UC RUSAL, Arconic Russia, Aluminium Metallurg Rus, GS-Reserve, Sespel, the MPF Bridgebuilding Company, Volgaavtodorproekt, the Morissot Institute, the Centre for Technical and Estimated Rationing in Construction, the State Public Institution of the Nizhny Novgorod Region 'Main Department of Roads', and others.

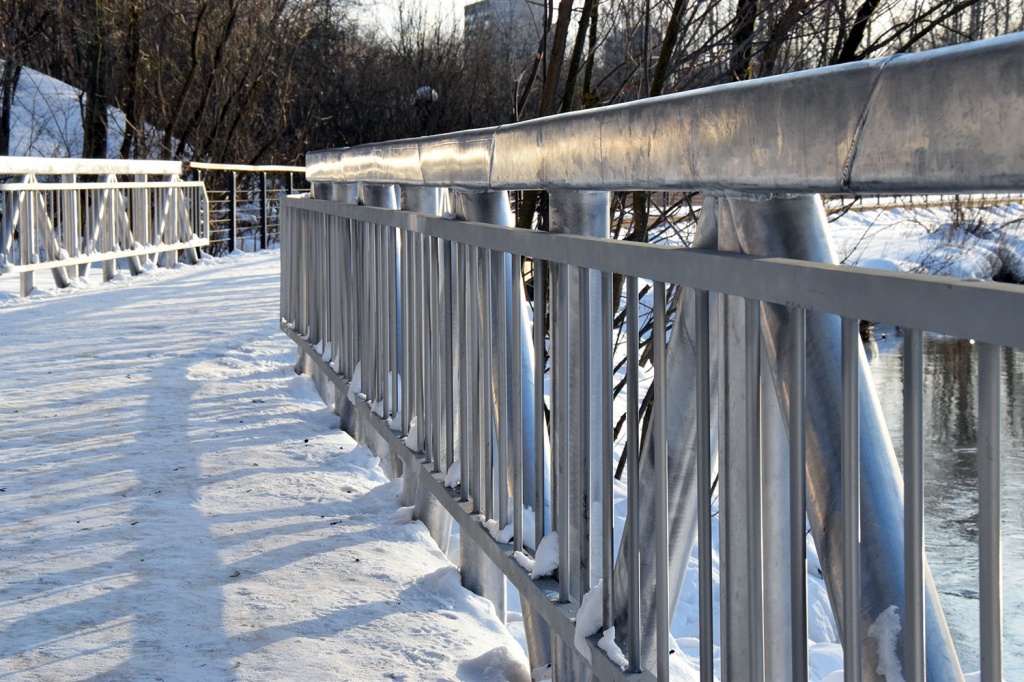

An aluminium pedestrian bridge was built in Moscow in Yauza park over the river of the same name.
Project participants: The Aluminium Association, UC RUSAL, GS-Reserve, the Administration of the North-East Administrative District of Moscow.
- The design of a bridge across Bolshaya Gruzinskaya Street (near the Moscow Zoo), the superstructural elements of which were designed of aluminium alloys, passed an expert review. The bridge is to be built in 2019. It will adorn the city and become a major tourist attraction, while also having a positive impact on the architectural image of the surrounding area..
- The successful construction of aluminium alloy bridges continues in more regions across the country: In Q2, 2018, the Krasnoyarsk regional state expert review body approved the construction of 2 pedestrian bridges from aluminium in Krasnoyarsk, which are to be built for the 2019 World Universiade (across 9 Maya Street and Partisan Zheleznyak Street). Currently, the manufacture of the bridge spans is being completed at LLC KraMZ; the elements are to be installed by October 2018.
The development of aluminium bridge construction in Russia is being held back by a number of problems, including a dated stereotype about the supposedly high cost of aluminium, and the lack of adequate regulations governing the use of aluminium structural elements for the construction of various types of bridges, such as automotive, rail and pedestrian bridges.
Prospects:
In other countries, a large number of aluminium pedestrian and bicycle bridges are being constructed. As a rule, foreign construction companies build new bridges from scratch or add sidewalk and bicycle lanes to already existing bridges by replacing concrete elements with aluminium ones.
In Europe alone, there are over 250,000 pedestrian and bicycle bridges. Chinese authorities pay special attention to the issue of reducing accidents on pedestrian bridges; therefore, over the next ten years, they plan to build some 300,000 pedestrian bridges, most of which will be made of aluminium alloys. Qatar, where road safety is also regarded as a top priority, plans to build 250 pedestrian bridges by 2022, including some made of aluminium components.
In Russia, structures designed to allow pedestrians to safely cross roads at different levels are clearly in short supply, while the number of per capita traffic accident deaths is one of the worst in the world. In addition, 15% of the existing pedestrian bridges in the country are in a very bad state of repair. A third of these run-down bridges could be renovated in short order by using aluminium alloys. The implementation of the pilot project by the Aluminium Association in Nizhny Novgorod has made it possible to expedite aluminium bridge construction in Russia.
In addition to the projects mentioned above, efforts are currently underway to promote aluminium bridges of various types in provincial Russia. The Aluminium Association has teamed up with the governments of the most investment-attractive regions, in which a lot of new road infrastructure is being built, to look into promising bridge designs which could be implemented using aluminium and aluminium alloys. At the moment, over 30 bridge construction projects are being considered, all of which use aluminium alloy load-bearing elements. For these properties, feasibility studies are currently being prepared so that funds can be allocated to design and manufacture aluminium load-bearing elements and to build the bridges.
Automotive and pedestrian bridges are to be constructed in Russia using aluminium elements. Specifically, a new bridge is being designed for Russian Railways in the Omsk Region which will make use of aluminium span structures (Isilkul station, West Siberian Railways). This bridge is to be built in 2019. Over the next few months, design documentation is to be developed and submitted to state expert review authorities. Preparations are being made in cooperation with the Ministry of Transport and Road Construction of the Kamchatka Territory in the Far East to develop a series of standard aluminium bridge span designs, 12, 15 and 18 metres in length for category II–V motorways with G8 dimensions for K14 class loads.
